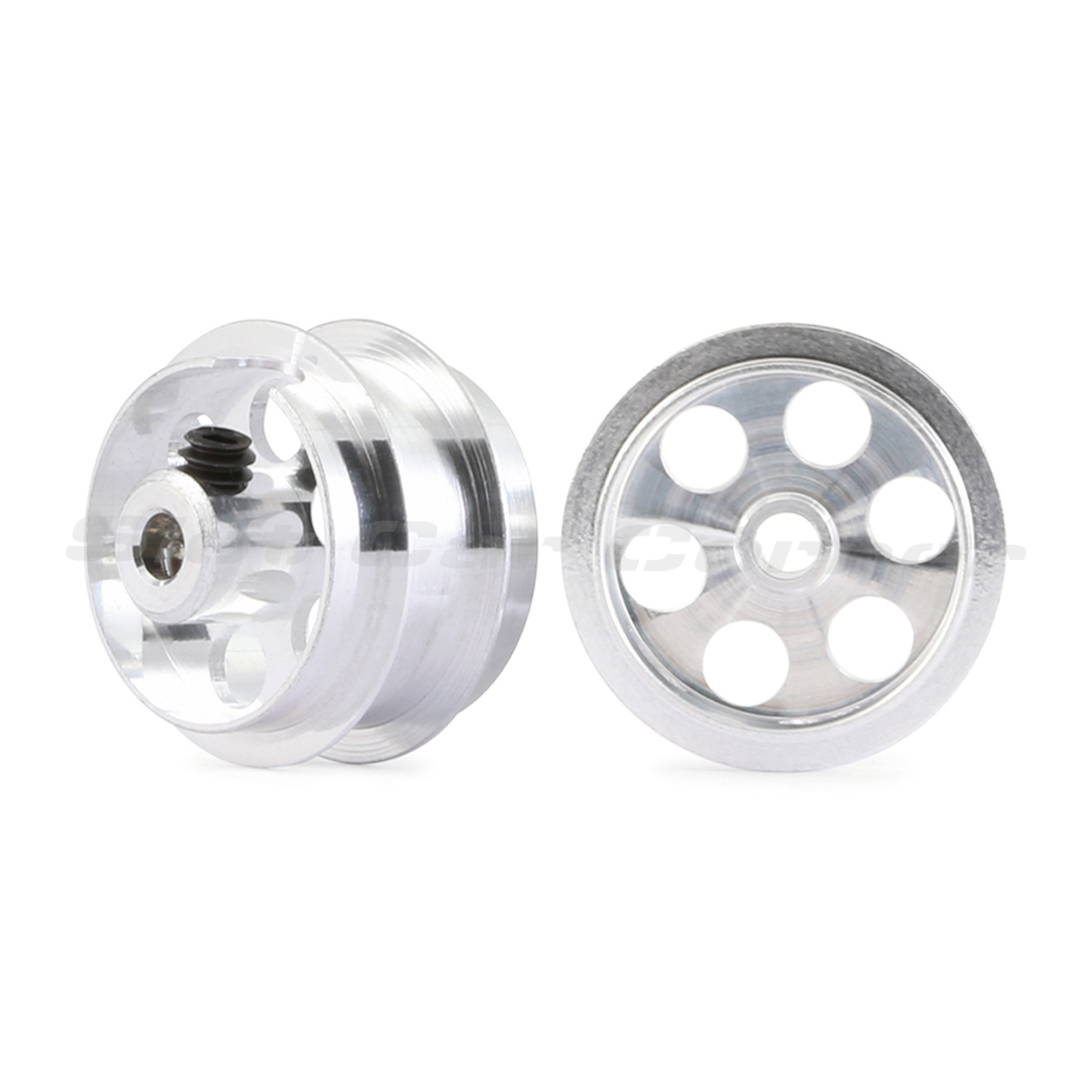

NSR 5016 16 × 10mm aluminum wheels are intended for rear axle use in compatible NSR slot car setups.
NSR part number: 5016
Also listed as: NSR5016 or NSR 5016
Specifications
| Specification | Details |
|---|---|
| Nominal wheel diameter | 16 mm |
| Width | 10 mm |
| Material | Aluminum |
| Axle fit | NSR 2.37 mm (nominal 3/32 inch) |
| Position | Rear |
| Rim construction | Air System |
| Set screw | 4-40 |
| Driver size | 0.050 inch hex |
Compatibility and Fitment
Use with NSR axles and tires matched to the wheel diameter, width and bead design. Check body clearance, track width and free rotation. Do not force the bore onto an oversized axle.
Package Contents
Two (2) wheels. Set screws are included.
