CBD0027 CB Design 5-Spoke Racing 15 x 13 Aluminum Wheels

SKU: CBD0027
U/M: Pair

The C.B. Design 15x13mm 5-Spoke Racing Wheel shares all of the great features of other C.B. Design Wheels plus several new features based on requests and feedback from experienced 1:32 racers.  These include:

  • Widest 1:32 C.B. Design Wheel currently offered
  • Double Center Rib design reduces wheel weight while increasing the wheel's surface area where it meets the tire by up to 15%.  The increased surface area is important to racers who (optionally) glue tires to wheels for optimum performance.

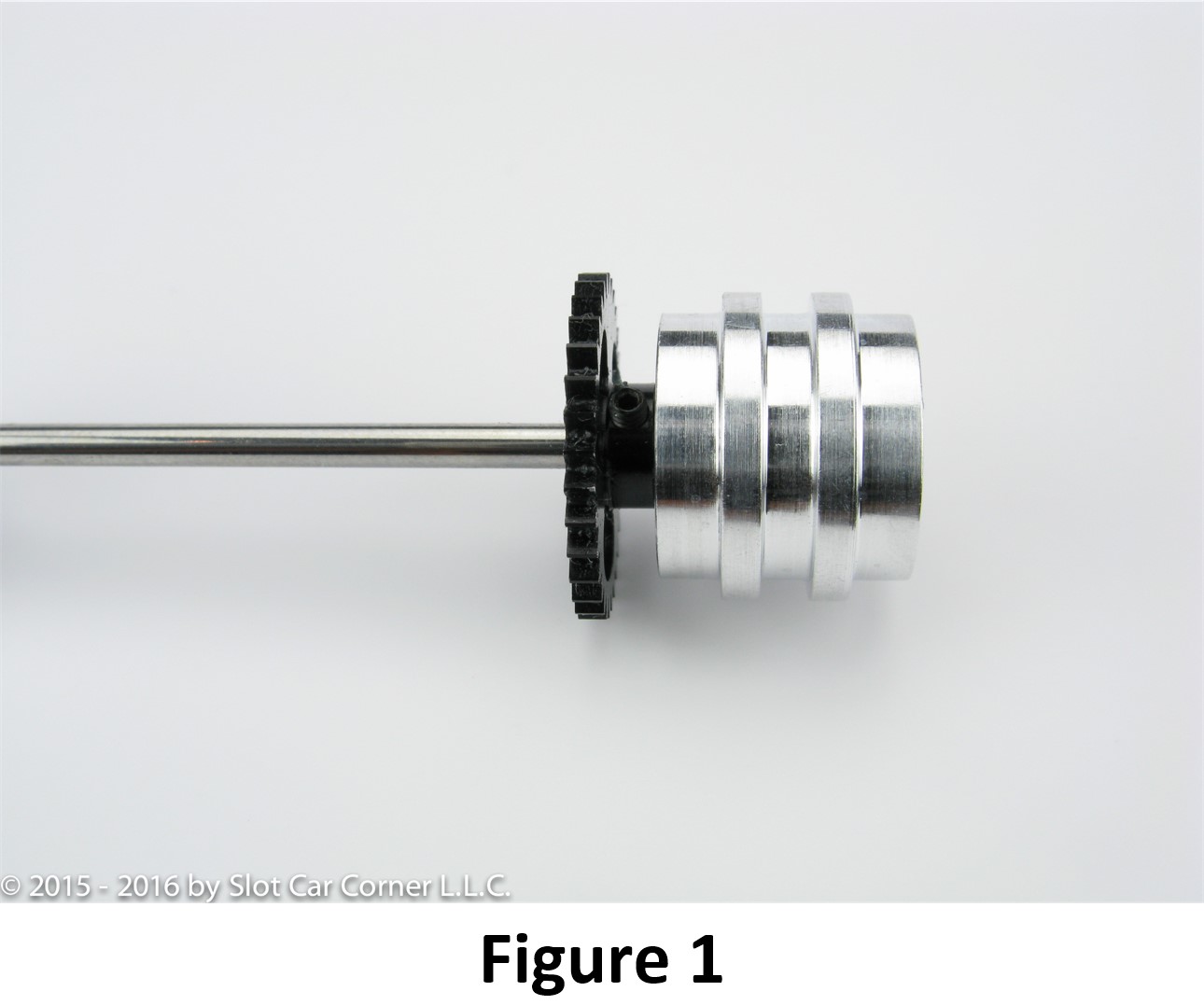

  • When using a spur gear, the spur gear’s hub increases the overall rear track width.  This effectively limits your options for wheel/tire combinations that will fit under the body.  Traditional 1:32 wheel designs (with hubs or hubless) do not take this into consideration (refer to Figure 1).

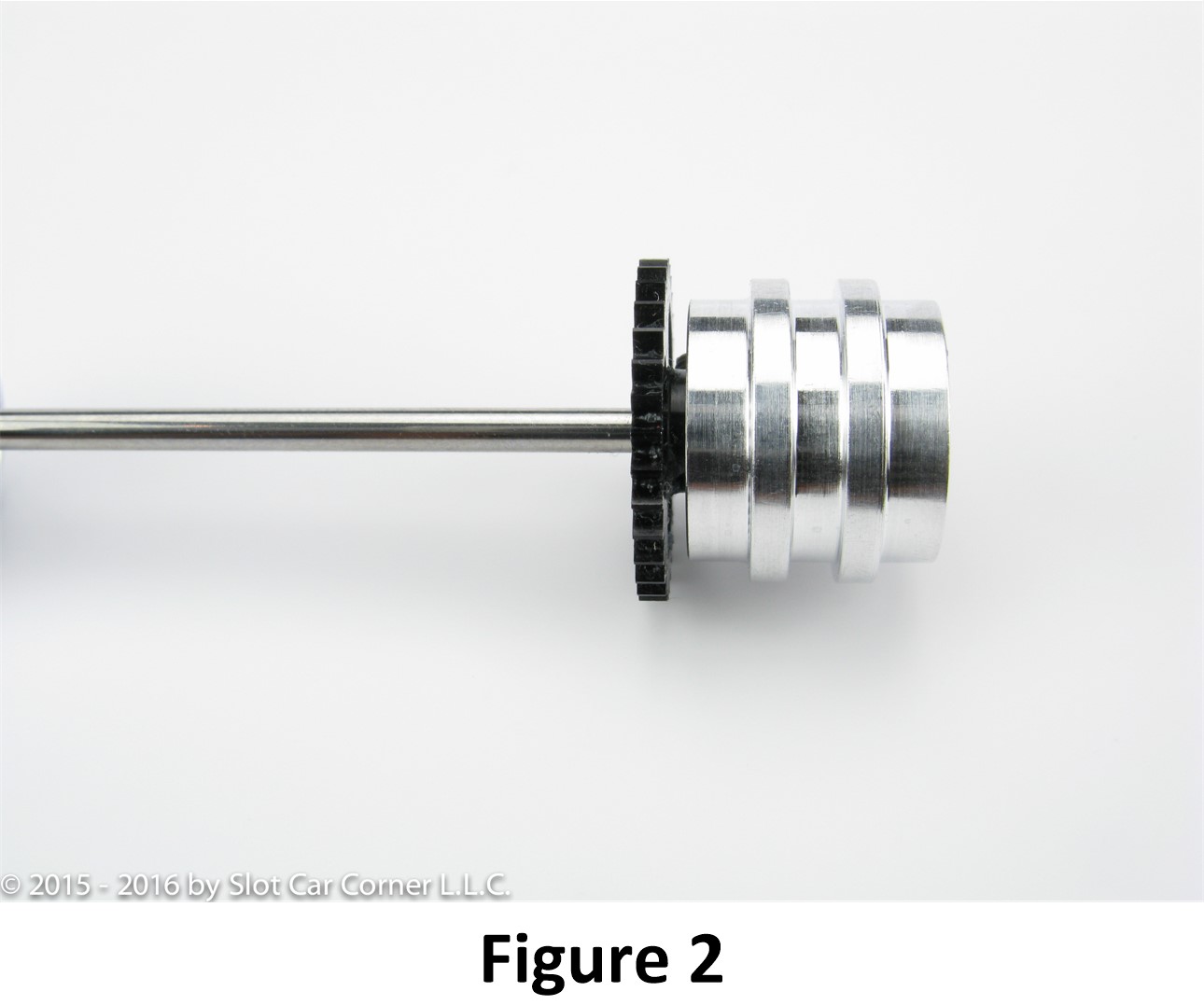

  • C.B. Design's innovative Hidden HubTM design gives racers more flexibility when trying to fit the a wider wheel/tire combination under a car. The C.B. Design Hidden HubTM design gives racers the ability to nest the spur gear's hub inside the wheel freeing up about 1mm of space for the wheel/tire (refer to Figure 2).



Click here for Wheel Dimensions


High-performance wheels require high-performance tires.  C.B. Design worked closely with Quick Slicks and Paul Gage Tires to ensure high-performance tires would be available for these wheels.

  • Quick Slicks (silicone)
    • Soft Compound - CB71S, CB72S
    • X-Firm Compound - CB71XF, CB72XF
  • Paul Gage (urethane)
    • Soft Compound (XPG) - 19137LM, 20137LM, 21137LM, 20138LM, 21138LM, 22168FF
    • Firm Compound (PGT) - 19137LM, 20137LM, 21137LM, 20138LM, 21138LM, 22168FF
