Track Wiring
Slot Car Corner offers a wide range of products to assist you with your track wiring project. Below are fa few examples of track wiring diagrams depending on the type of driver station you plan to use.
Track Wiring Example 1 is a generic wiring diagram for use with 3-post commercial style driver station hookups (click thumbnail below to enlarge). The example is for a 2-lane track; however, it can be easily adapted to support more lanes.
Track Wiring Example 2 is a generic wiring diagram for use with 3-post commercial style driver station hookups with a lane reversing switch (click thumbnail below to enlarge). The example is for a 2-lane track; however, it can be easily adapted to support more lanes.

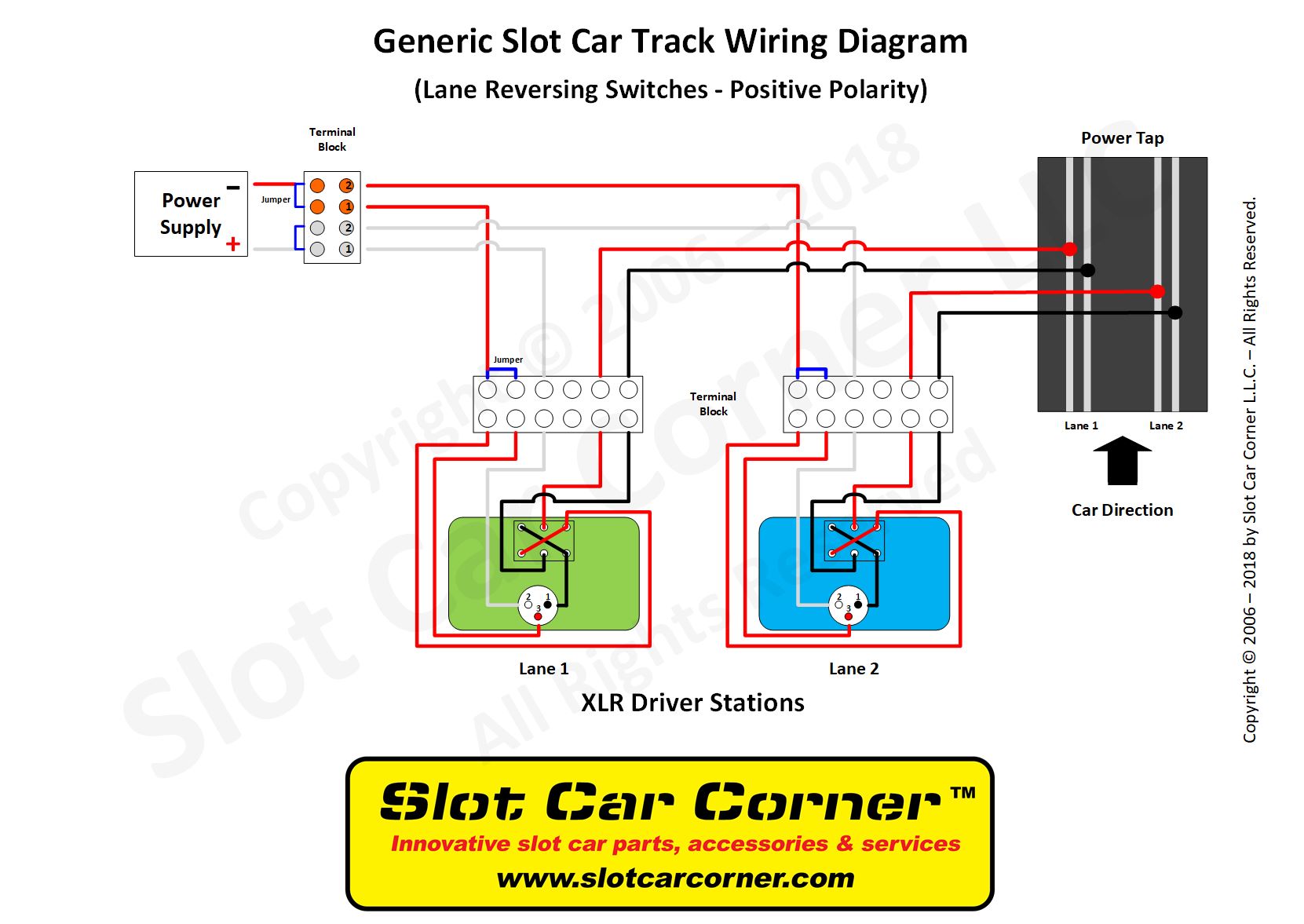

Track Wiring Example 3 is a generic wiring diagram for use with XLR driver station hookups with a lane reversing switch (click thumbnail below to enlarge). The example is for a 2-lane track; however, it can be easily adapted to support more lanes.
Track Wiring Guide
The Slot Car Corner Wiring Guide was written over 15 years ago. During this time, hundreds of slot car racers have used it to successfully plan and execute their track wiring project. While the guide focuses on wiring a plastic sectional track, the basic approach can be used on wood tracks as well.
Questions About Your Track Wiring Project?
We're here to provide assistance with your track wiring project. You can send your questions, including your contact information, via email using the "Contact Us" link.
