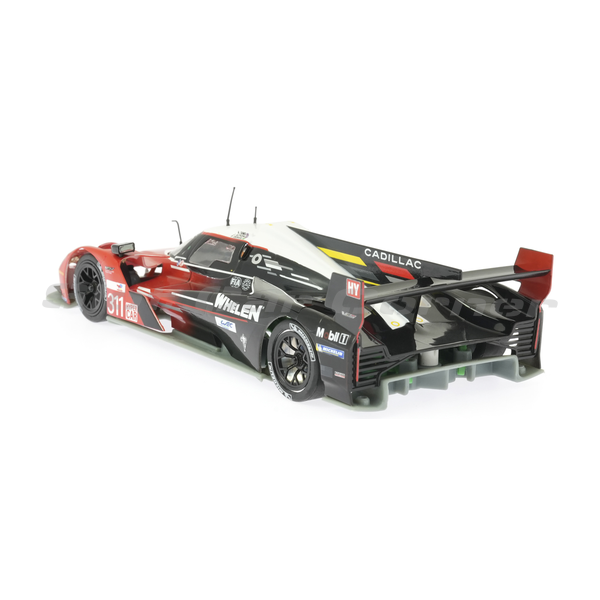

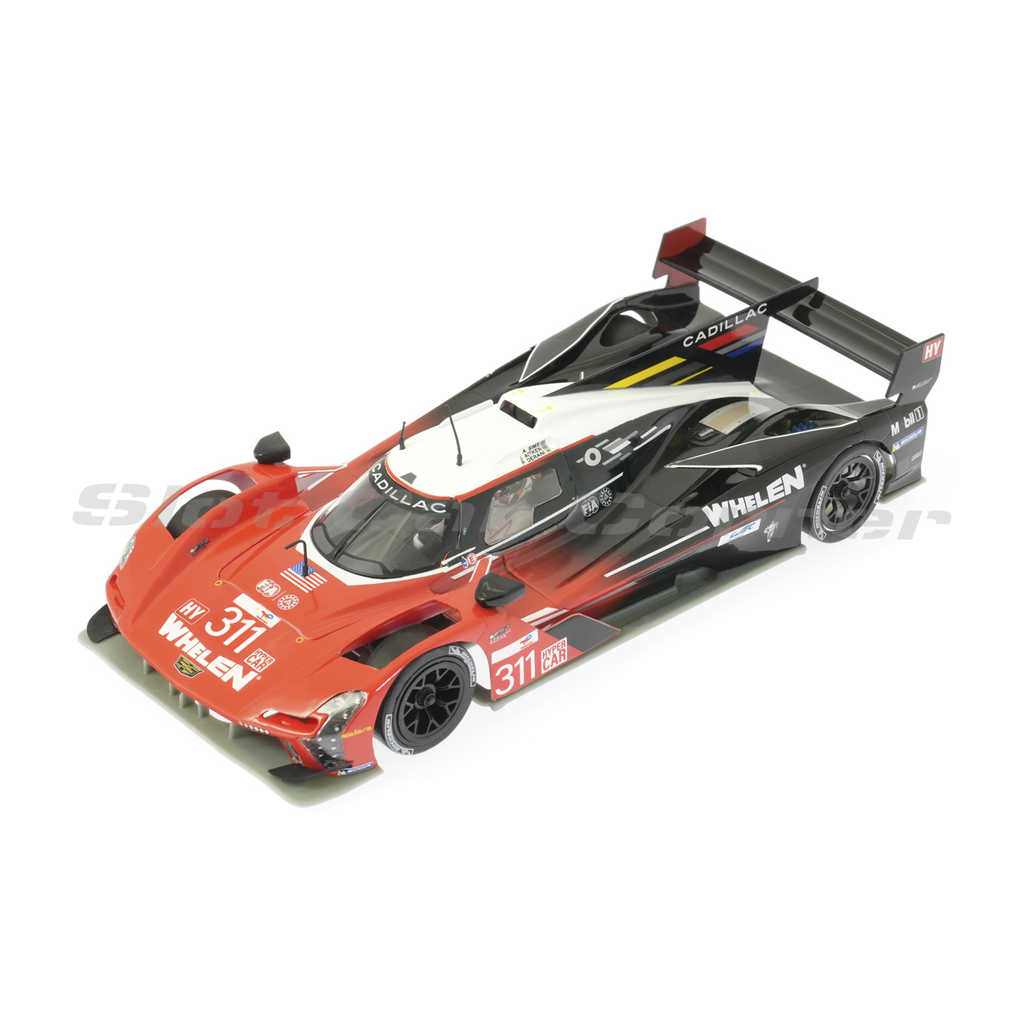

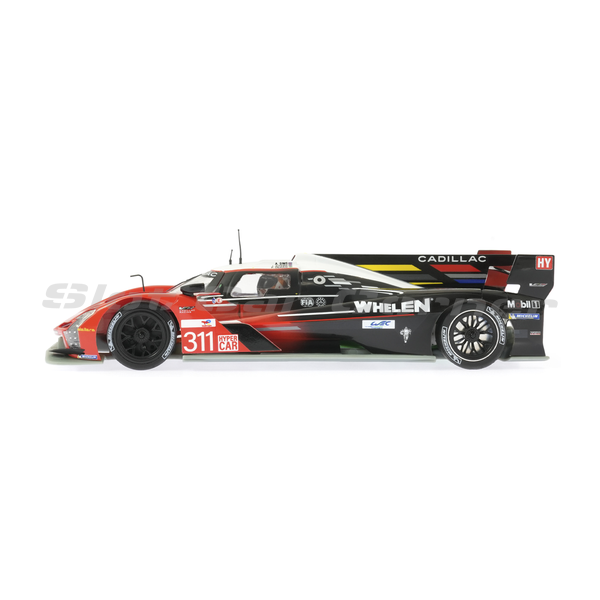

The Scaleauto SC-6380 Cadillac V-Series features the No. 311 livery from the 2023 24 Hours of Le Mans. This complete 1:32 analog PRO slot car uses an RT4 anglewinder configuration and SC-0029 22,500 RPM motor.
Scaleauto part number: SC-6380
Specifications
| Specification | Details |
|---|---|
| Brand | Scaleauto |
| Scale | 1:32 |
| Track System | Analog |
| Model | Cadillac V-Series |
| Team / Race Number | Whelen / No. 311 |
| Race / Year | 24 Hours of Le Mans 2023 |
| Version | PRO |
| Chassis | Pro in-flex RT4, soft compound, grey; fully assembled |
| Drivetrain | Anglewinder |
| Motor | Long-can motor, 22,500 RPM |
| Gear Ratio | 13/29 (2.23 : 1) |
| Motor Mount | RT4, 1.0mm offset |
| Guide | Advanced screw guide |
| Front Wheels | Plastic |
| Rear Wheels | Aluminum |
| Front Tires | 18 × 9 mm, standard compound (nominal diameter × width) |
| Rear Tires | 19 × 10.5 mm, standard compound (nominal diameter × width) |
| Axles | Tempered steel, 2.38 mm |
Scaleauto Cadillac V-Series LMDh Replacement Parts
View the Scaleauto Cadillac V-Series LMDh Replacement Parts guide for the exploded diagram, stock replacement parts and optional replacement parts. Compare the listed components with your car's version and fitted motor configuration before ordering.
Scaleauto Slot Car Replacement Parts Guide. Match replacement parts to the model and fitted motor configuration.
Tires and Fitment
The manufacturer specifies RT-compound front and rear tires with plastic front wheels and aluminum rear wheels. Match replacement tires to the installed wheel dimensions and track requirements.
