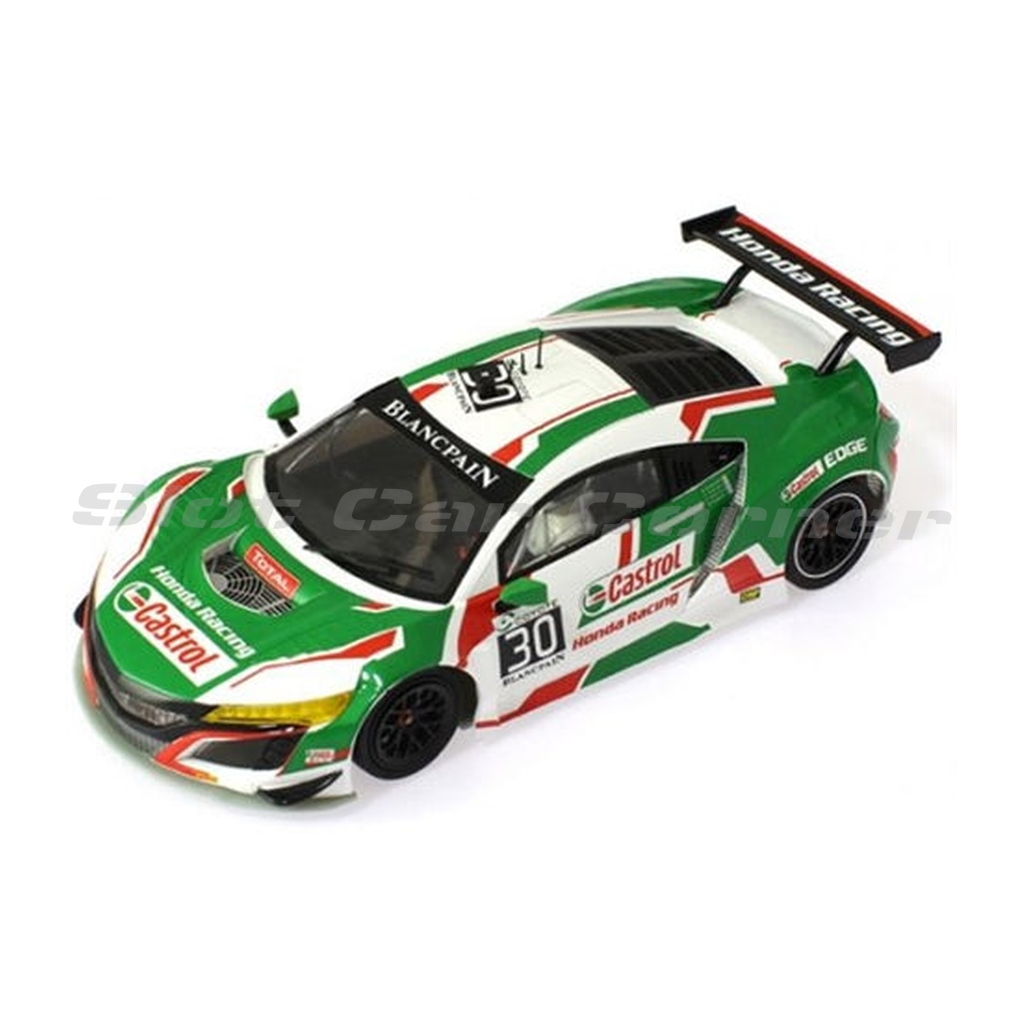

The Scaleauto SC-6307R NSX GT3 carries the green, white and red Castrol No. 30 livery. This 1:32 analog R-Series slot car uses the SC-0011C 21,300 RPM anglewinder motor documented by Slot Car Corner.
Scaleauto part number: SC-6307R
Specifications
| Specification | Details |
|---|---|
| Brand | Scaleauto |
| Scale | 1:32 |
| Track System | Analog |
| Model | NSX GT3 |
| Team / Race Number | Castrol / No. 30 |
| Version | R-Series |

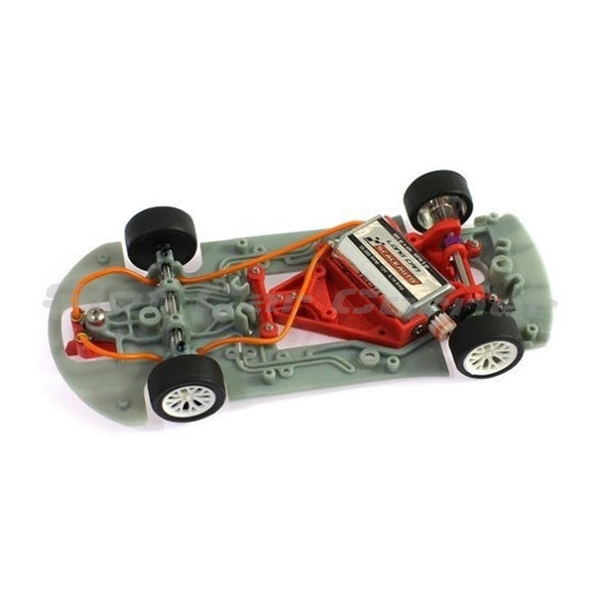

| Chassis | Medium |
| Drivetrain | Anglewinder |
| Motor | Long-can motor, 21,300 RPM |
| Gear Ratio | 12/27 (2.25 : 1) |
| Motor Mount | RT3, 1.0mm offset |
| Guide | Advanced screw guide |
| Axle Bearings | 3/32-inch bronze spherical bearings |
| Front Wheels | Plastic |
| Rear Wheels | Aluminum |
| Front Tires | 18 × 9 mm, standard compound (nominal diameter × width) |
| Rear Tires | 19 × 10.5 mm, standard compound (nominal diameter × width) |
| Magnet | Removable |
| Front Axle | Adjustable height |
Scaleauto NSX GT3 Replacement Parts
View the Scaleauto NSX GT3 Replacement Parts guide for the exploded diagram, stock replacement parts and optional replacement parts. Compare the listed components with your car's version and fitted motor configuration before ordering.
Explore the Scaleauto Slot Car Replacement Parts Guide. Match parts to the NSX GT3 and its fitted chassis and motor configuration.
Tires and Fitment
Standard-compound front and rear tires. Confirm installed wheel dimensions before choosing replacement tires.
Racing Compatibility
Slot Car Corner documents this SC-0011C 21,300 RPM setup as AMSCO Legal. Confirm the current class rules for your complete car setup.
