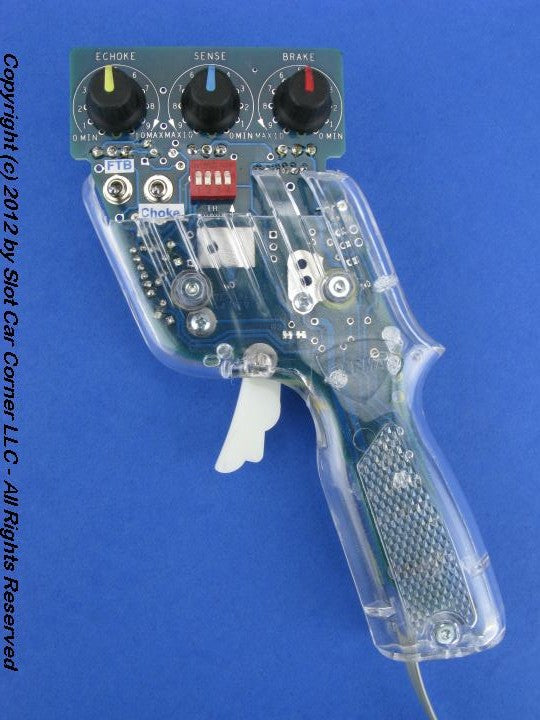

FET32 Third Eye 1:32 Electronic Controller with Choke

FET32 Controller with Choke Features

• 22^nd Century Fully Electronic High Technology Linear Design- specifically designed for 1:32 Racers
• All “Mosfet Powered Design”- featuring 3^rd Eye’s Exclusive “FETDrive” Motor Drive and “FETBrakes”.
• “Differential Amplifier Technology” - power control uses the test of time proven design.
• “No Power Blast Relay” - full-on power is done electronically; the “FETDrive” has less resistance to the power supply/battery and a faster response than a conventional Power Blast Relay.
• “More Usable Throttle Range” – now with 20 more usable bands near maximum throttle where a Power Blast Relay would jump 1-2 V directly to the power supply/battery.
• 3^rd Eye’sexclusive “FETBrakes” - braking (stops the car on a dime and gives 9 cents change); stops car even after the track power goes off.
• No fuses to replace- uses “PTC” fuses for“Mistake Proof” reverse polarity protection.
•  “Infinitely Adjustable Brake and Sensitivity controls”- (0-Max) control from onset to full.
• “Sensitivity Control Voltage Goes to .5V - ¾ Throttle” - provides maximum control for all 1:32 cars.
• “Selectable Throttle Curve”– four (4) settings for “Improved Throttle Response” and softer bottom end throttle response.
• “Track Mounting Bracket” - power Assembly rests firmly and securely on the track.
•  “Heat Sinking” and“Built In Fan” - provide safe, reliable cooling.
•  “Lightweight Handle”- with easy-to-use controls located at the top and sides.
• “Smooth trigger action/Continuously Variable Throttle Control” - (no steps) 150 bands.
• “No Trigger Dead Band”- no trigger travel from brake to power = faster lap times.
• Attractive“Professional looking Styling” - with Parma handle and Trigger
• High intensity“BluePower LED Indicator” - located in the handle.
• 12” Long 12 gauge“high flexibility power leads” – for maximum power and easy hookups.
• “Electronic Choke (Voltage limiting)”- sensitivity does not interact with Choke limit.
•  “Choke On/Off Switch” - ensures Choke is off; the Choke settings can also be preset.
•  “Full Throttle Bypass Switch”- (FTB) automatically overrides Choke at full throttle.

The FET32 controller is also available without the optional electronic voltage control ("choke").

FAQ

Question:    Can the FET32 be used with 1/24 cars/motors?

Answer:     The FET32 is designed specifically for 1/32 cars/motors; however, it can be used with "Mild" 1/24 motors such as 16D's and Falcon's.  Using the FET32 with any other "hotter" (higher current draw) 1/24 motors will damage the FET32 and void the warranty.  Racers who plan to run 1/24 cars/motors should use the Third Eye FETroller which is designed specifically for 1/24 racing.
