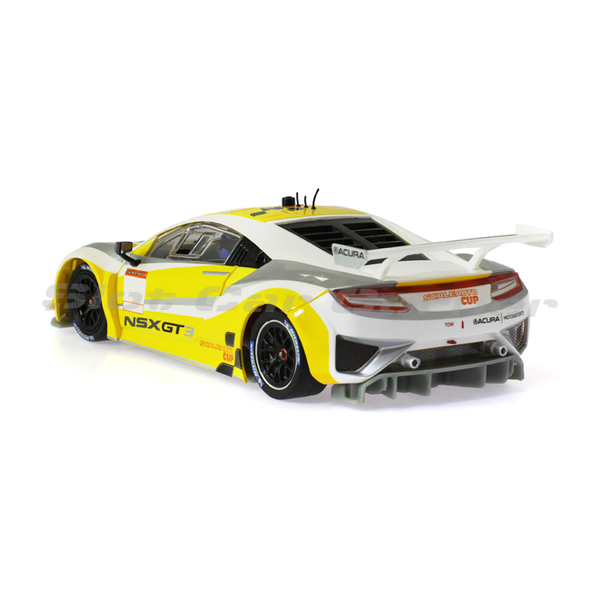

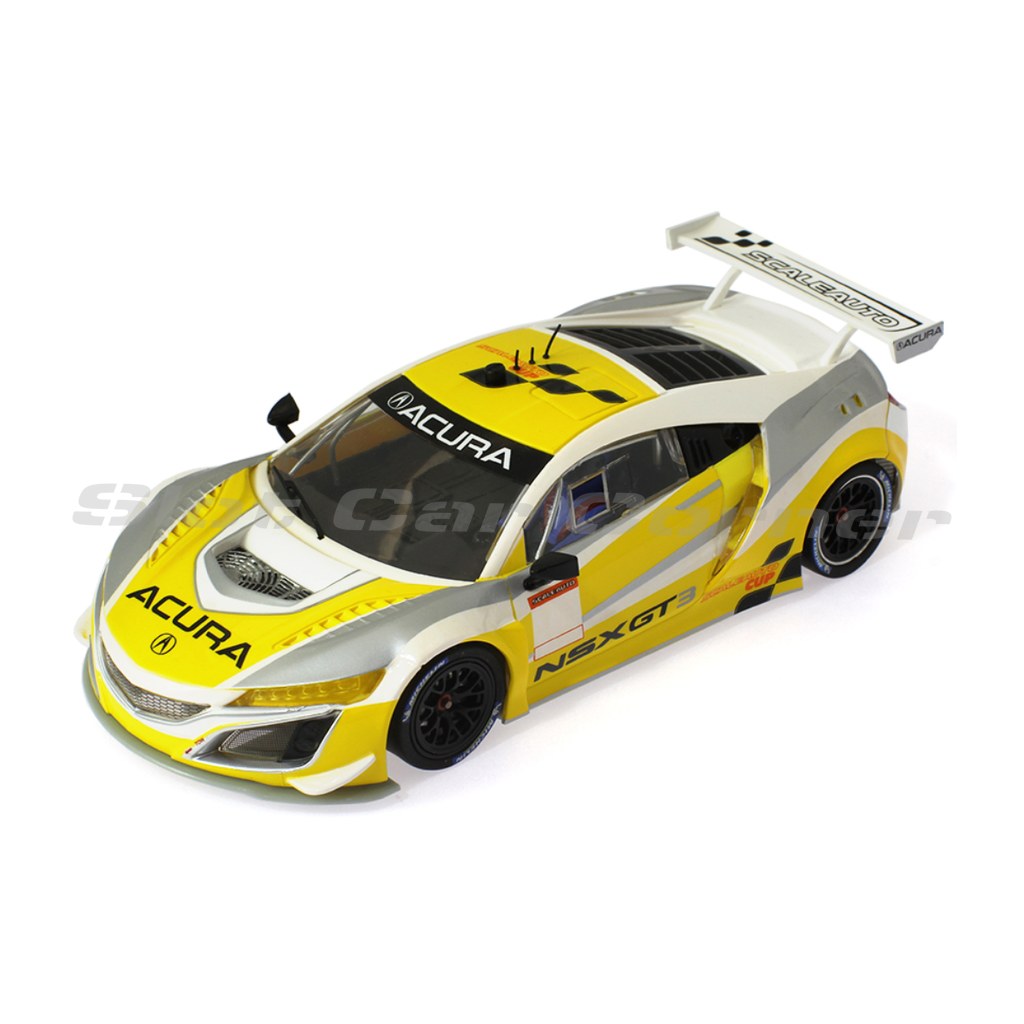

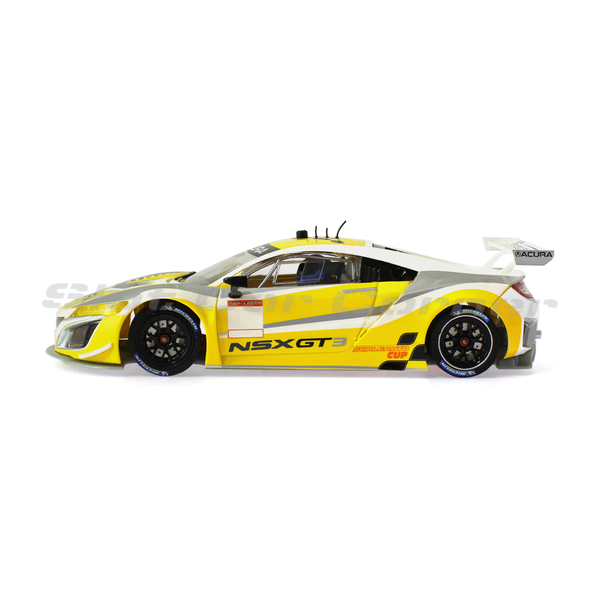

The Scaleauto SC-6287D H. NSX GT3 Cup Version is a complete 1:32 analog kit with a pre-painted yellow/white body and a fully assembled chassis. Assembly of the body and chassis is required.
Scaleauto part number: SC-6287D
Specifications
| Specification | Details |
|---|---|
| Brand | Scaleauto |
| Scale | 1:32 |
| Track System | Analog |
| Model | H. NSX GT3 |
| Version | Cup Version; complete pre-painted kit |
| Chassis | R2.0 Soft Flex, grey; fully assembled |
| Drivetrain | Anglewinder |
| Motor | Long-can, 21,300 RPM |
| Gear Ratio | 12/27 (2.25 : 1) |
| Motor Mount | RT3, 1.0mm offset |
| Guide | Advanced screw guide |
| Axle Bearings | 3/32-inch bronze spherical bearings |
| Front Wheels | Plastic |
| Rear Wheels | Aluminum |
| Front Tires | 18 × 9 mm, standard compound (nominal diameter × width) |
| Rear Tires | 19 × 10.5 mm, standard compound (nominal diameter × width) |
| Assembly | Required; chassis supplied fully assembled |
| Body Color | Yellow/White |
| Axles | Tempered steel, 2.38 mm |
Scaleauto NSX GT3 Replacement Parts
View the Scaleauto NSX GT3 Replacement Parts guide for the exploded diagram, stock replacement parts and optional replacement parts. Compare the listed components with your car's version and fitted motor configuration before ordering.
Scaleauto Slot Car Replacement Parts Guide. Match replacement parts to the model and fitted motor configuration.
Tires and Fitment
RT-compound front and rear tires are fitted with plastic front wheels and aluminum rear wheels. Match replacement tires to the fitted wheel dimensions.
Assembly and Racing Compatibility
Assembly required. Manufacturer photographs show the assembled appearance. SCC documents this SC-0011C 21,300 RPM setup as AMSCO Legal; confirm current class rules for the complete car.
