The Scaleauto SC-6529a-HD is an RT4 anglewinder motor mount for compatible long-can (FK-180) motors.
Scaleauto part number: SC-6529a-HD
Specifications
| Specification | Details |
|---|---|
| Brand | Scaleauto |
| Manufacturer Part Number | SC-6529a-HD |
| Part Type | Motor mount |
| Mount System | RT4 |
| Motor Configuration | Anglewinder |
| Motor Format | Long-can (FK-180) |
| Stiffness | Extreme Hard |
| Motor Offset | −1 mm |
| Motor Angle | 12° |
| Unit of Measure | Each |
Compatibility and Fitment
Use with a compatible RT4 chassis and anglewinder gearing. Check motor format, axle supports, suspension mounting points and clearance before installation.
Check the axle bearing arrangement against the exact mount variant. Ball bearings are not included.

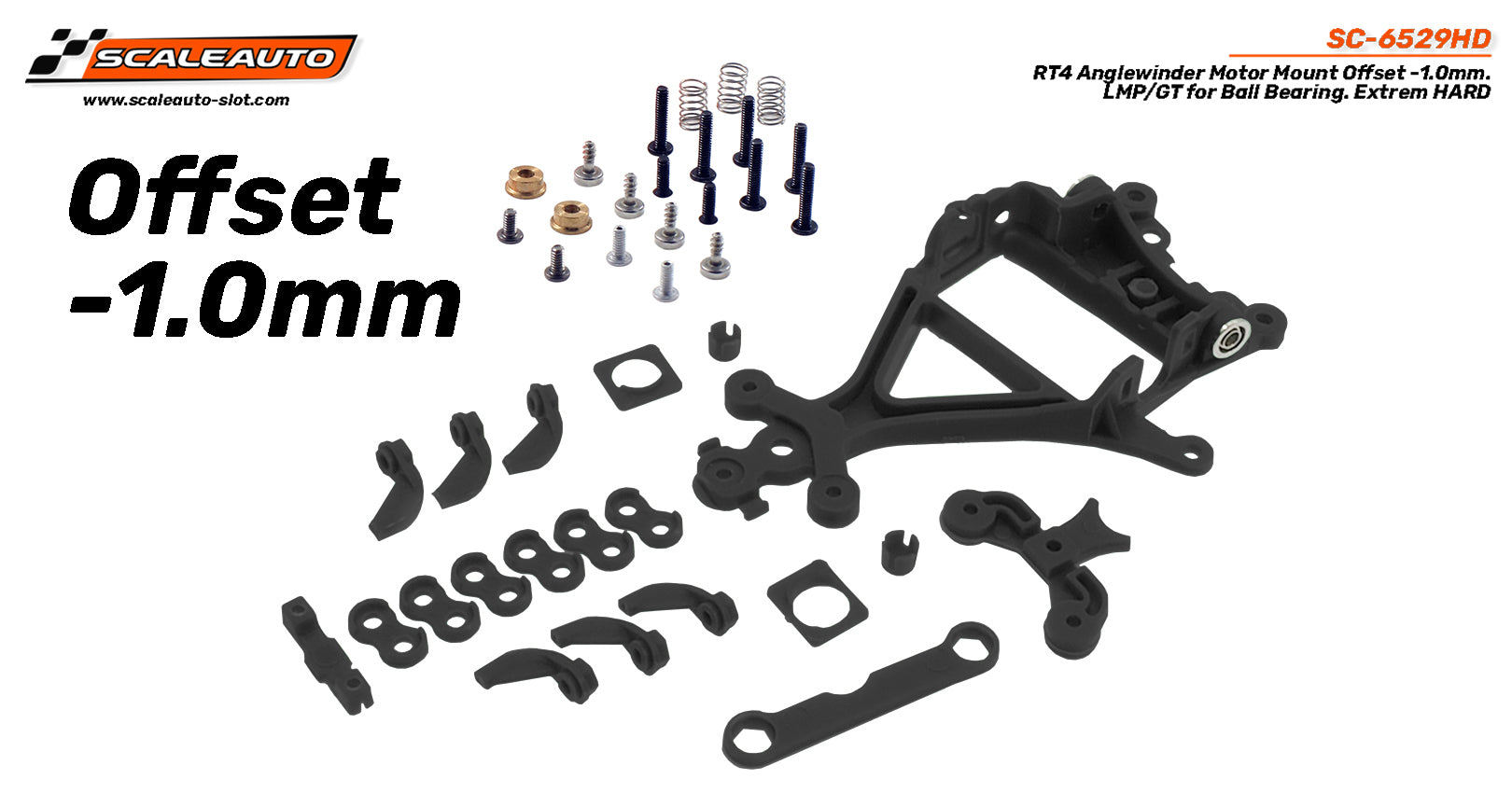

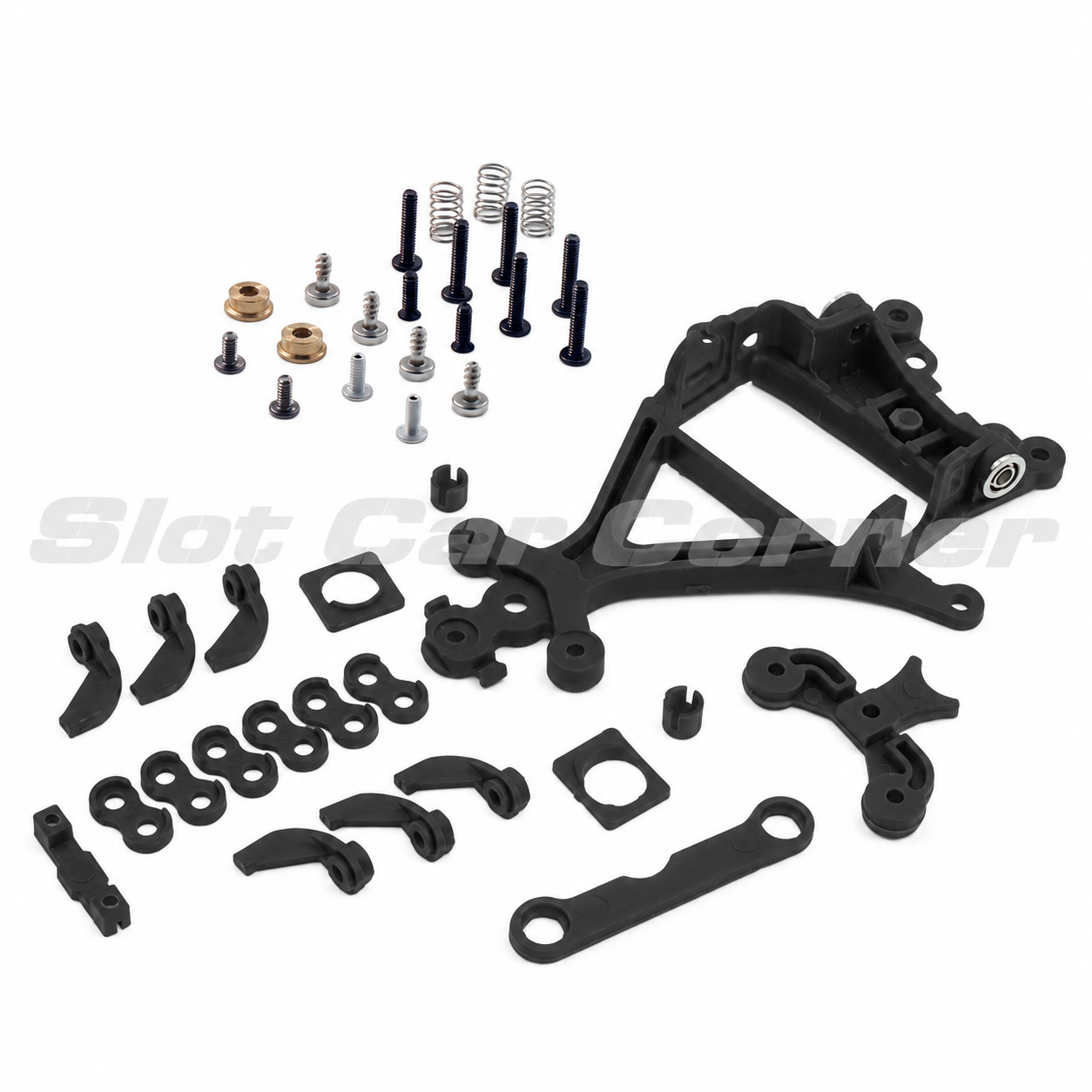

Scaleauto SC-6529a-HD RT4 Anglewinder Extreme Hard (black) motor Mount, 1.0mm Offset, 5 fixing points. GT/LMP motor mount includes single flange brass bushing (ball bearings NOT included). Motor angle 12 degrees.
Note: This motor mount will also accept a single flange ball bearing (not included - available for purchase separately).
Package Contents
One Scaleauto SC-6529a-HD motor mount kit.
