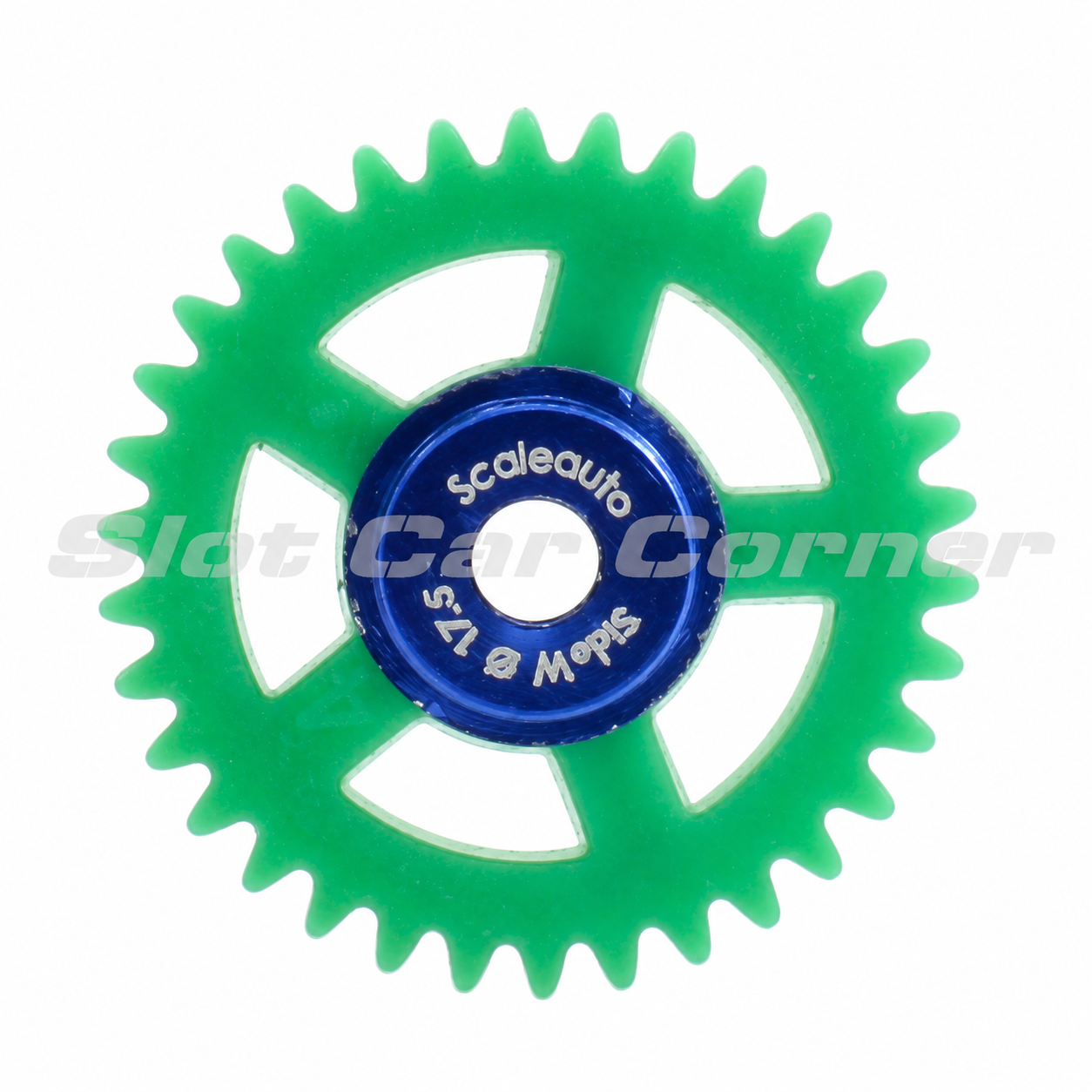

The Scaleauto SC-1154R is a 34-tooth nylon sidewinder gear for 3/32-inch axles. It uses M50 gearing and includes an M2.5 set screw.
Scaleauto part number: SC-1154R
Specifications
| Specification | Details |
|---|---|
| Brand | Scaleauto |
| Manufacturer Part Number | SC-1154R |
| Part Type | Sidewinder gear |
| Number of Teeth | 34 |
| Material | Nylon |
| Gear Module | M50 |
| Axle Diameter | 3/32 in (2.38 mm) |
| Set Screw | M2.5 |
| Outside Diameter | 17.5 mm |
| Unit of Measure | Each |
Compatibility and Fitment
For a compatible sidewinder drivetrain with a 3/32-inch axle and M50 pinion. Check motor position, gear mesh and clearance before installation. Secure the gear with its included M2.5 set screw.
Package Contents
One Scaleauto SC-1154R gear with an M2.5 set screw.
