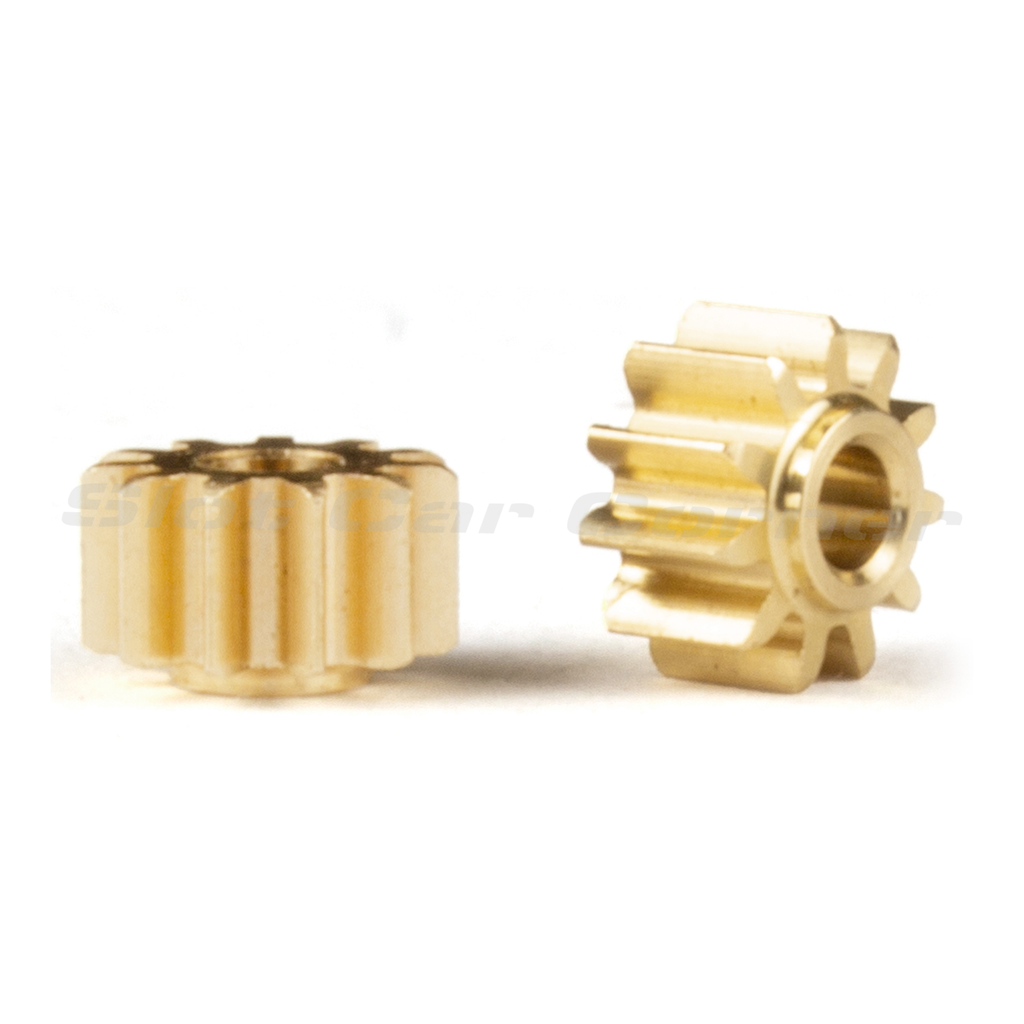

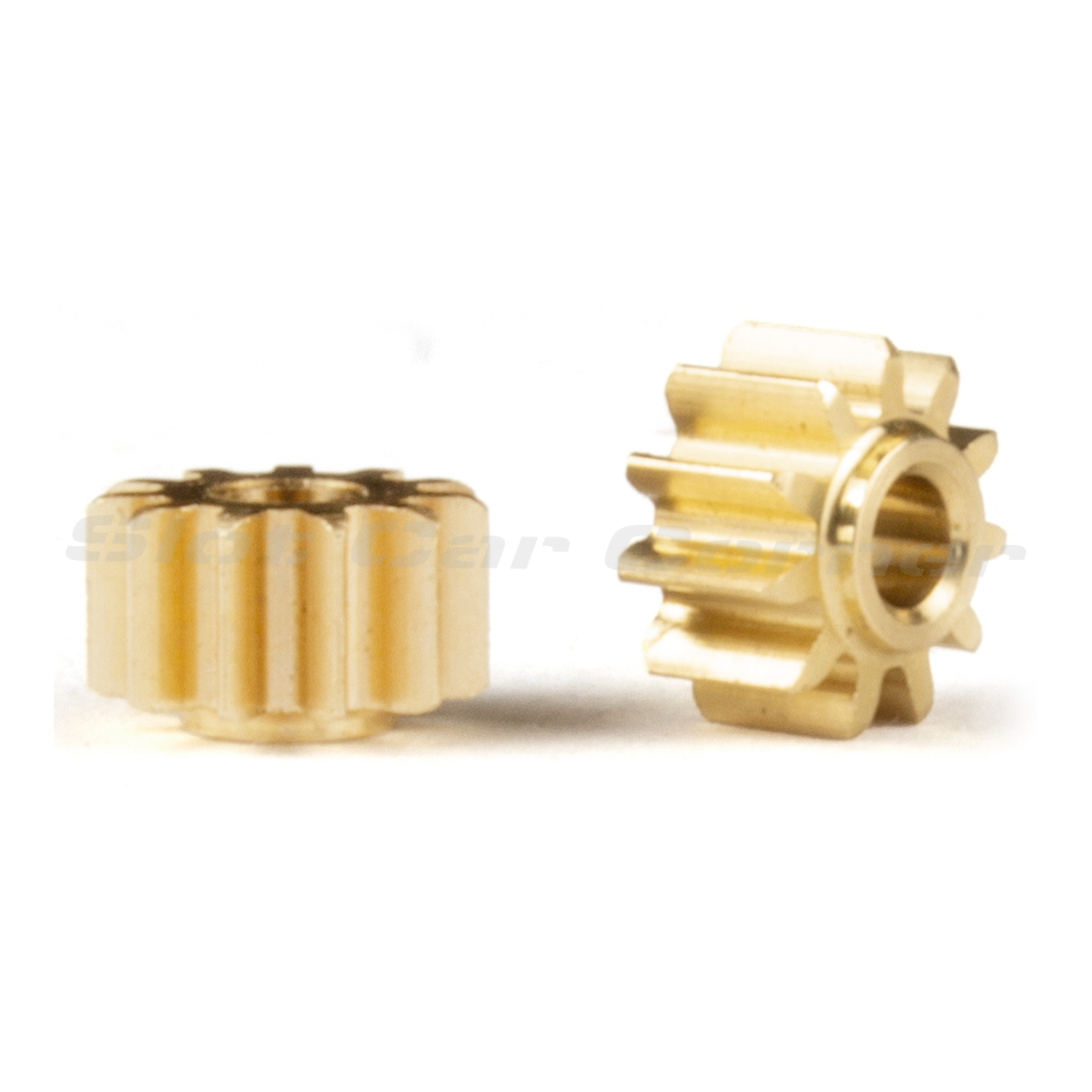

The NSR 7010EVO is a 10-tooth brass pinion for compatible inline slot car drivetrains.
NSR part number: 7010EVO
Also listed as: NSR7010EVO or NSR 7010EVO
Specifications
| Specification | Details |
|---|---|
| Tooth count | 10 |
| Material | Brass |
| Drive configuration | Inline |
| Pinion diameter | 6.0 mm |
| Motor shaft diameter | 2.0 mm |
| Tooth profile | EVO3 extra low friction |
Compatibility and Fitment
Select NSR 63xxAL-EVO3 inline crown gears and confirm motor-mount spacing and gear mesh. Use a suitable pinion puller/press to prevent motor-shaft damage during installation and removal.
Package Contents
Two (2) pinions.
