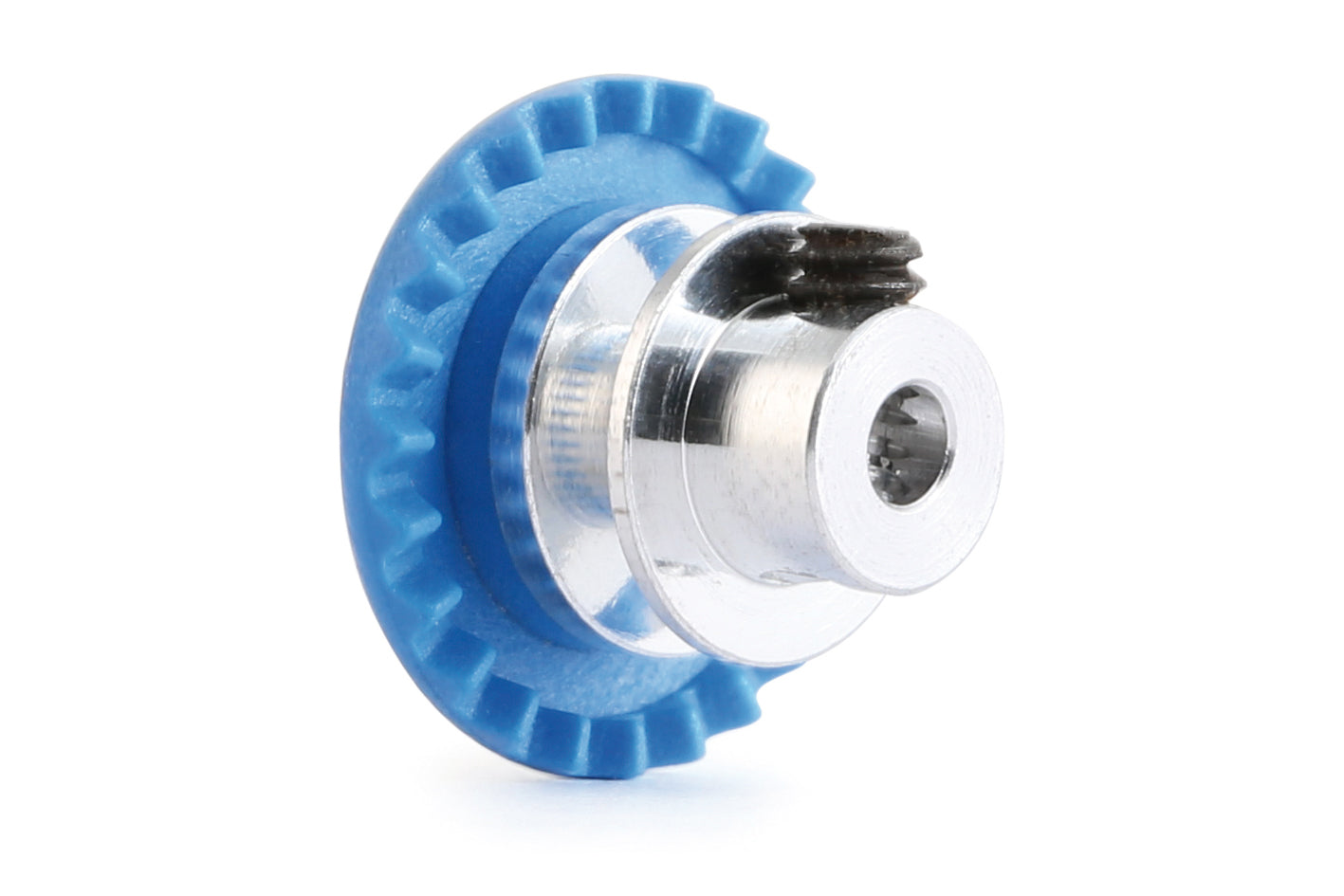

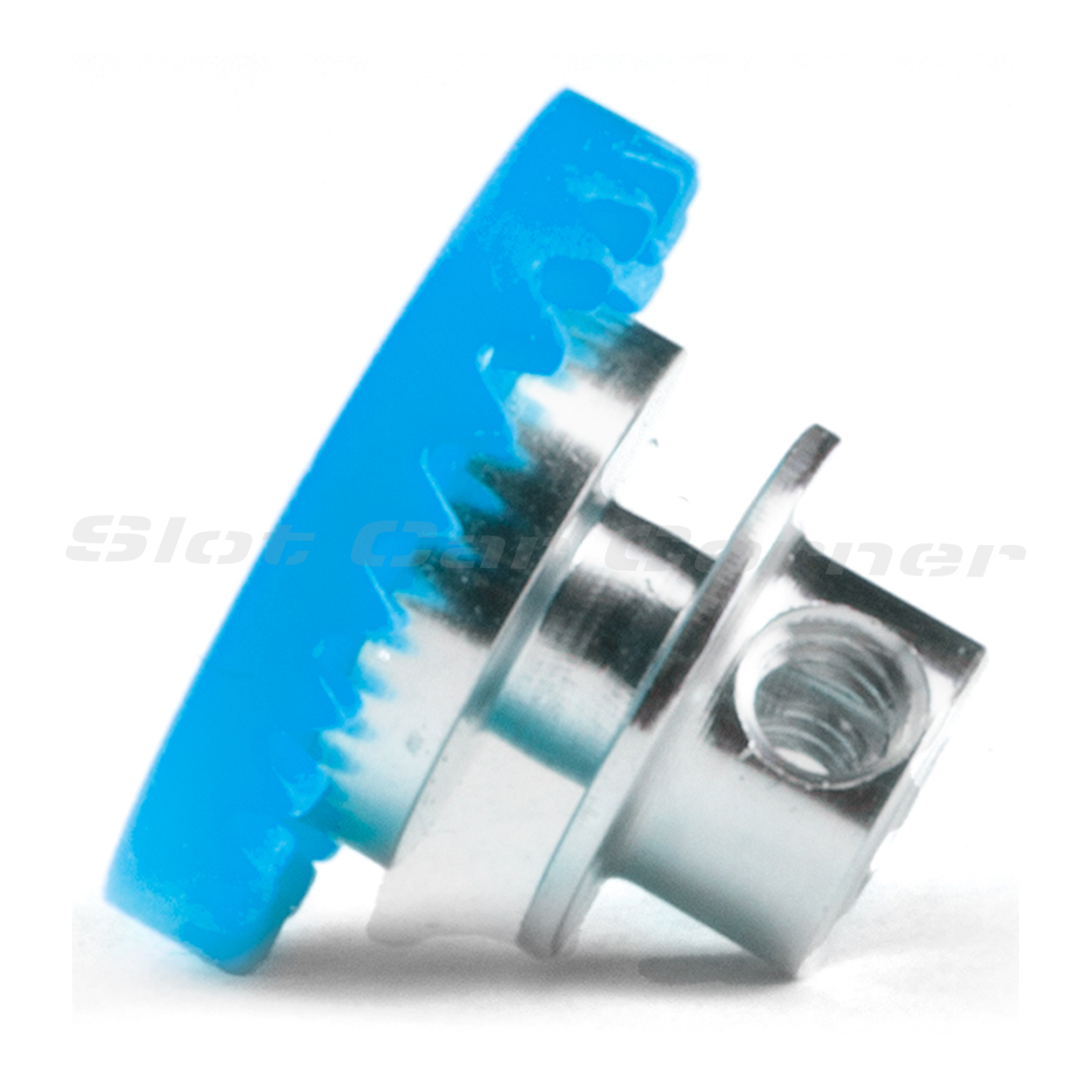

The NSR 6324AL-EVO3 is a 24-tooth inline crown gear with a aluminum hub and plastic teeth for a nominal 3/32-inch axle.
NSR part number: 6324AL-EVO3
Also listed as: NSR6324AL-EVO3 or NSR 6324AL-EVO3
Specifications
| Specification | Details |
|---|---|
| Drive configuration | Inline |
| Tooth count | 24 |
| Hub material | Aluminum |
| Gear teeth | Plastic |
| Axle diameter | Nominal 3/32 inch |
| Driver size | 0.050 inch hex |
| Series | EVO3 |
Compatibility and Fitment
Match the gear to the inline motor mount and pinion profile. The EVO3 crown requires a matching NSR 67xxEVO3 or 70xxEVO3 pinion. Check free rotation and gear mesh before running. Keep the hub and gear mesh lubricated; avoid overtightening the set screw.
Package Contents
One (1) crown gear.
