NSR 6633EVO 33T 16mm EVO Plastic Anglewinder Gear, Violet

$5.99
SKU: NSR 6633EVO
U/M: Each

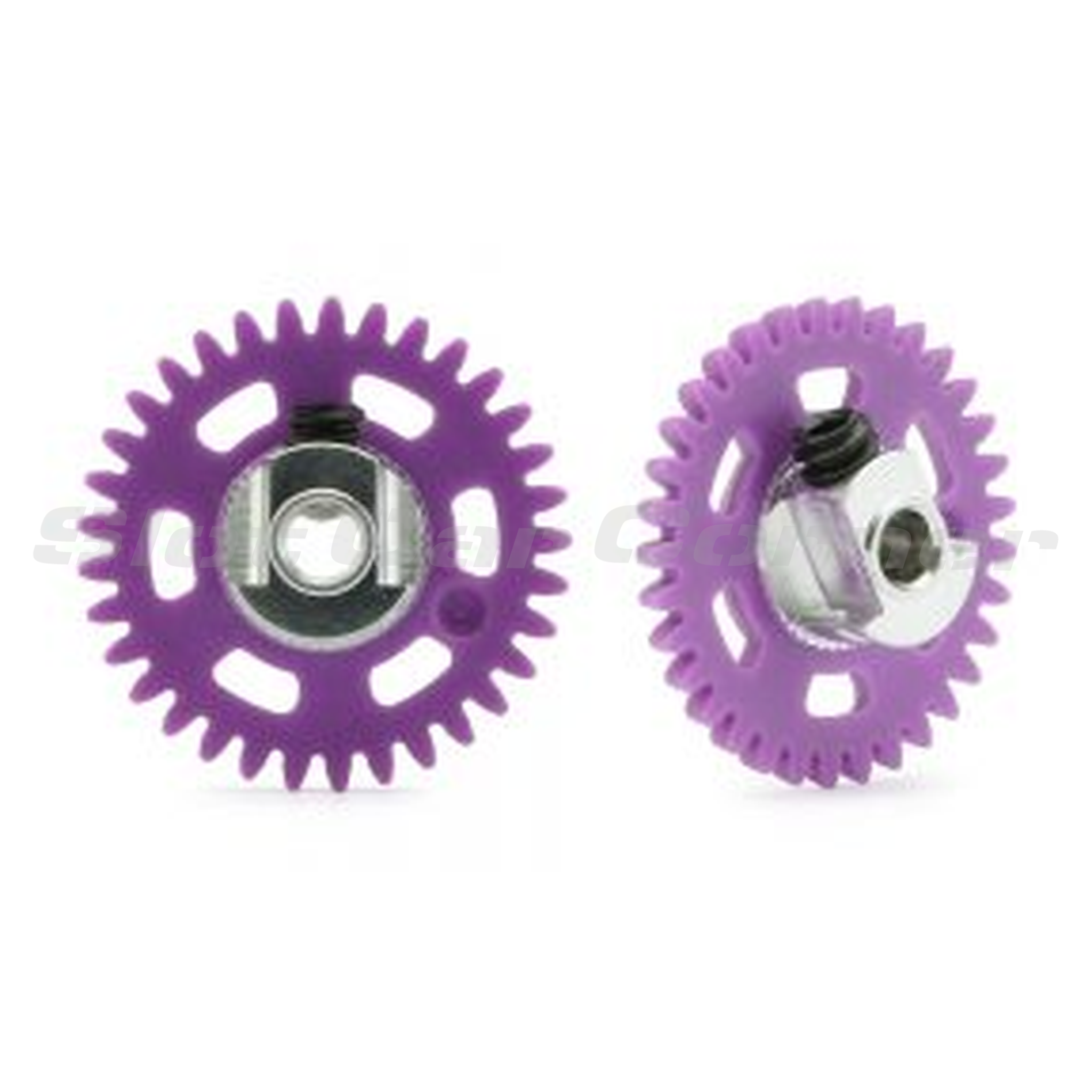

The NSR 6633EVO is a 33-tooth, 16mm plastic anglewinder gear with an EVO aluminum hub.

NSR part number: 6633EVO
Also listed as: NSR6633EVO or NSR 6633EVO

Specifications

Specification Details
Teeth 33
Gear Diameter 16 mm
Axle Fit NSR 2.37 mm axle (nominal 3/32 inch)
Drive Configuration Anglewinder
Application NSR anglewinder drivetrains
Recommended Pinion Family NSR 73xx - 7312, 7313, 7314, 7315
Material Low-friction plastic; EVO aluminum hub
Color Violet
Set Screw 4-40
Driver Size 0.050" (1.3mm) hex

Compatibility and Fitment

For NSR anglewinder drivetrains using an NSR 2.37mm axle. NSR recommends the 73xx pinion family (see links in Specifications table above). Apply a very thin coat of grease to the gear teeth and check gear mesh after installation. Use caution not to overtighten the set screw.

Package Contents

One (1) anglewinder gear.
