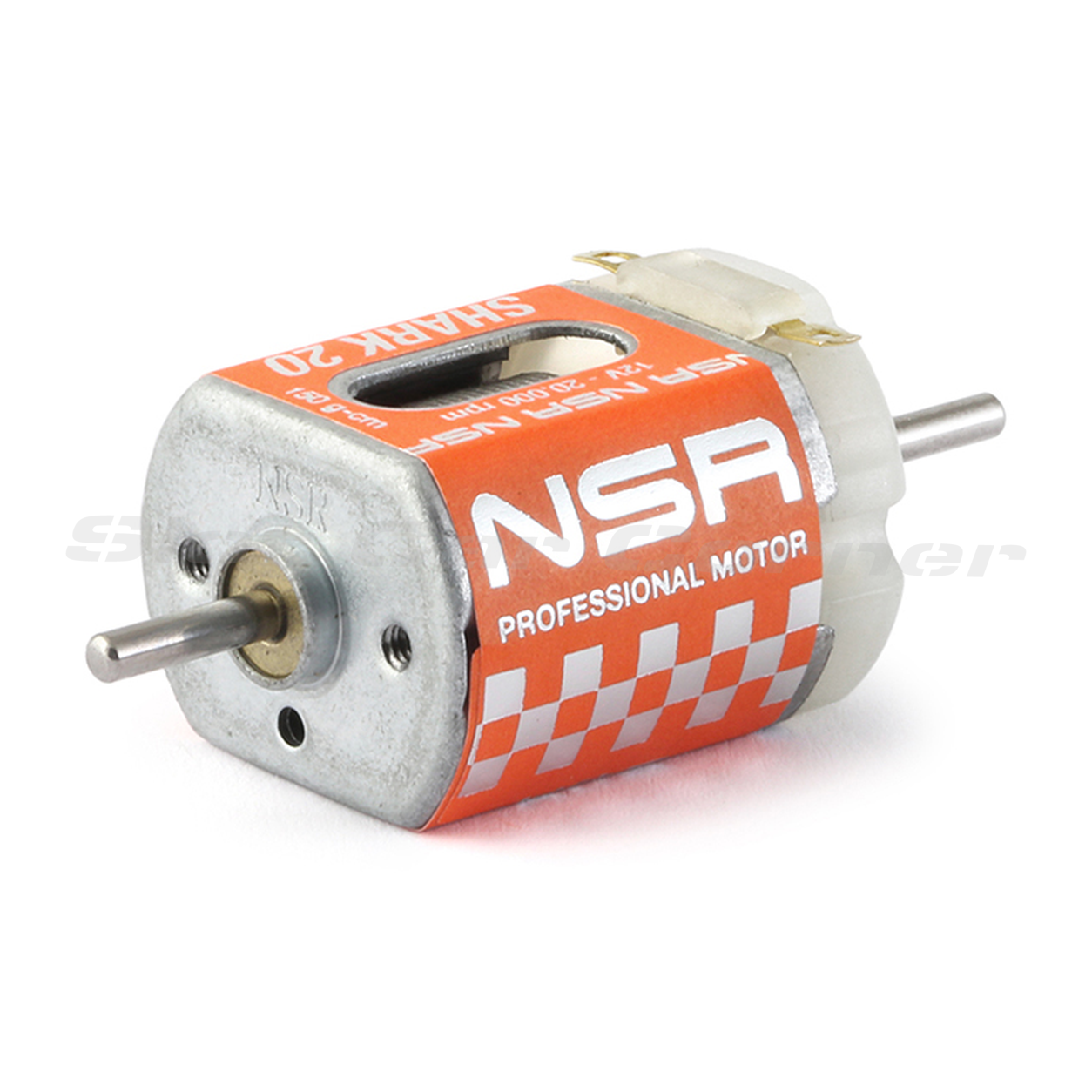

The NSR 3040 Shark EVO is a short-can slot car motor rated at 20,000 RPM at 12 volts. It has a double-ended 2.0mm shaft and mounting holes for motor retaining screws.
NSR part number: 3040
Also listed as: NSR3040 or NSR 3040
Specifications
| Specification | Details |
|---|---|
| Motor family | Shark EVO |
| Can type | Short can (FC130) |
| Speed | 20,000 RPM at 12 V |
| Torque | 150 g·cm at 12 V |
| Shaft diameter | 2.0 mm |
| Shaft arrangement | Double-ended |
| Mounting | Motor retaining screw holes |
Compatibility and Fitment
Use with a motor mount designed for a short-can FC130 motor. Confirm shaft clearance, pinion fit, mounting position, and controller and power-supply suitability for the installed car.
Package Contents
One (1) motor. Motor retaining screws are available separately.
