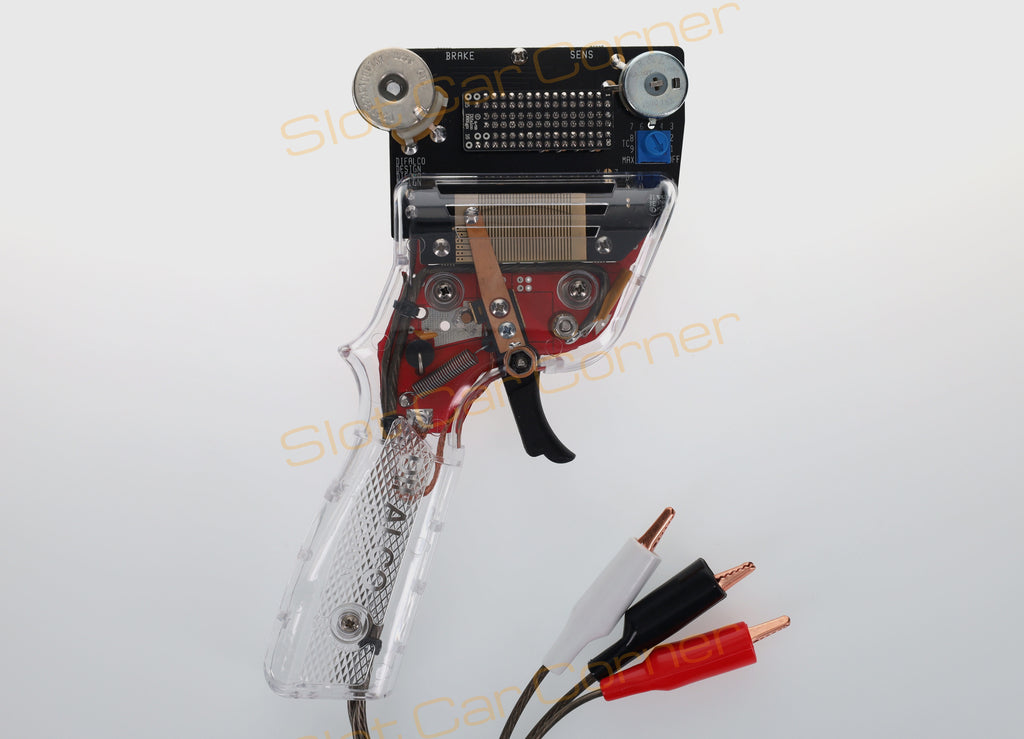

DD312 Difalco Design NEO 30-Band 1:32 / 1:24 Hybrid Controller

**** Please Note ***

1. While we do our best to have the Difalco Neo controllers we offer in our inventory, during busy periods we may occasionally run out.  Should this happen, please remember Difalco Design controllers are custom fabricated - lead time is currently running approximately 3-4 weeks from ordering.  Feel free to contact us about availability or with any questions before ordering.
2. Handle colors vary - please feel free to contact us if you have a color preference.

The Difalco Design DD312 Neo Hybrid Controller is the newest addition to the NEO controller lineup.  The DD312 is a high-performance hybrid controller that can be used for both 1:32 and some 1:24 analog slot cars. The DD312 includes a larger heat sink and 10 ohm brake pot that can be used with "mild" 1:24 motors such as 16D's and Hawks.  Many of these features are not available in competitor's comparably priced controllers.

• 30 Bands:  The 30-band design provides smoother, more precise control than comparably priced controllers.
• Flexibility:  Unlike resistor based controllers which are designed to work for a very narrow range of applications, the Difalco DD312 30-band Neo Hybrid controller will work with virtually any 1:32 motor and "mild" 1:24 motors such as 16D's and Hawks.
• Adjustable Braking:  Ten (10) ohm brake pot provides a wide range of adjustment to match car, track and driver characteristics for optimum performance.
• Adjustable Sensitivity:  Provides a wide range of adjustment to match car, track and driver characteristics for optimum performance.
• Traction Control:  Allows racers to adjust how much voltage is sent to the track when the controller trigger is NOT in the full-on position.  When the trigger is in the full-on position, the feature is bypassed (i.e. full power is sent to the track).
• Resistor Network:  Like the high-end Genesis 1:32 controllers, the 30-band DD312 Neo Hybrid controller features a small resistor network board that plugs into the main controller board.  The standard (included) 290 ohm resistor network is designed for 1:32 cars.  Additional resistor network boards are available in our online store.  The additional (optional) resistor networks give you the option to further tune the performance characteristics of the 30-band DD312 Neo Hybrid controller to your specific requirements.
• Ball Bearing Trigger With Threaded Trigger Pin:  Designed for heavy-duty use and long life.  The ball bearings provide silky smooth trigger action resulting in more precise control.  They will not wear like standard oilites that induce trigger side play and cause poor wiper button contact.  The adjustable pivot nut means even after years of heavy use your controller will never develop trigger "slop" like other brands.
• Positive Polarity:  The DD312 NEO Hybrid controller is wired for positive polarity ONLY.
• Design:  All Difalco Neo controllers are built on a fiberglass frame with a large floating brass power contact (for maximum power transfer), stainless steel hardware, and heavy duty wire. The circuit board is nickel plated and will not corrode like plain copper designs.
• Ergonomics:  Difalco DD312 Neo Hybrid controllers feature a sturdy, comfortable handle of their own design that can be used for extended periods of time without causing pain or fatigue.  This is the same handle used on the higher-end Genesis controllers.
• Ease of Maintenance:  With minimal user maintenance, your Difalco DD312 Neo Hybrid  controller will give you many years of trouble-free service.  Clearly written maintenance instructions are included.  The open frame design makes routine cleaning and maintenance quick and easy.
• Service and Support:  Complete troubleshooting instructions are included so in the unlikely event a problem should occur racers can quickly diagnose and fix most problems with readily available, inexpensive repair parts.  No need to send your controller back to the factory or another country.  In the event you need assistance, Jim at Difalco Design will be there with his 45 years of slot racing knowledge for advice or to service your controller.

Support

For questions about controller operation or basic troubleshooting, contact Slot Car Corner for assistance.  For problems that require more in-depth troubleshooting, repair or replacement, you will need to contact Difalco Design directly for assistance.  For convenience, we have provided contact information below.

email:  askjim@difalcoonline.com

phone:  (772) 334-1987
